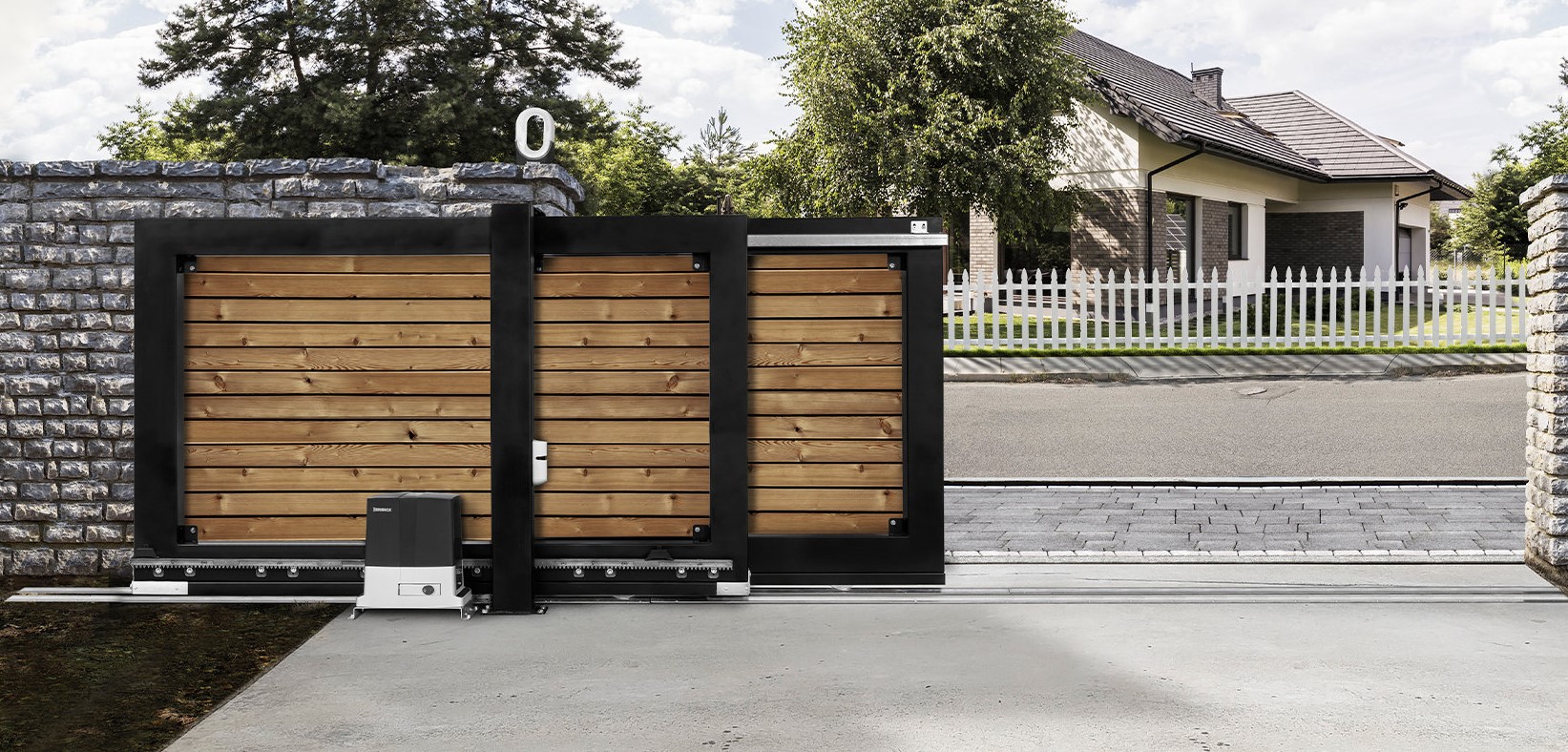

HI-MOTIONS has designed a new range of accessories for the construc tion of telescopic sliding gates with t wo or more panels that slide on the same number of tracks on the ground.

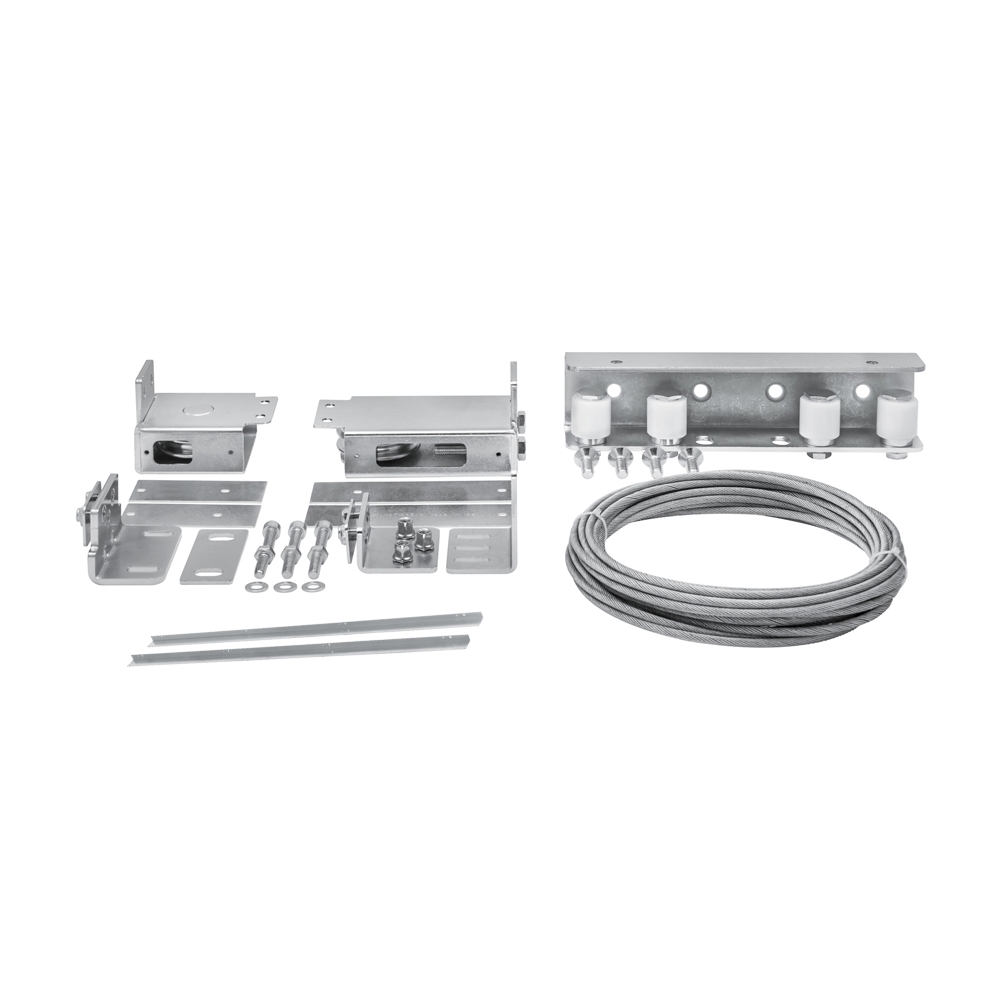

They also make kits containing the accessories necessar y for assembling a telescopic system.

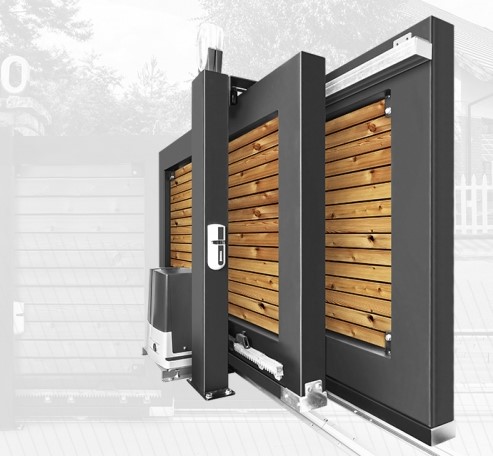

TELESCOPIC GATE BOTTOM MOUNTING
TELESCOPIC GATE BOTTOM MOUNTING
//////////// /////
2+ doors
In this case, the pulley box is positioned under the door.
The cable running underneath the lower par t allows eliminating the aesthetic impac t, also thanks to the sideguards (281.11).
This t ype of assembly allows installing more than t wo doors.
It is necessar y to consider the minimum wheel diameter (min. 120 mm) and the T door profile dimensions (min. 60 mm, max. 120 mm).
